VDS-100: HIGH PERFORMANCE MAGNETIC SENSOR FOR VEHICLE DETECTION

OVERVIEW
  • High reliability magnetic field signal analysis Algorithm built in
  • Selectable presence time & control sensitivity
  • Maximum Detection area is 2.5m (optimal at 2m)
  • Anywhere when dramatic reduction of construction cost, period and maintenance

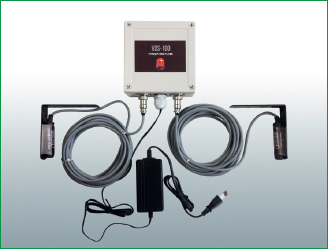

VDS-100
Intelligent vehicle detection system
Magnetic sensor-based vehicle watch system capable of long distance detection
Can replace loop sensor system, reducing installation cost and period
Semi-permanent system not affected by environment including weather and temperature

The VDS-100 has been specifically designed and engineered for use in the demanding Vehicle control industry replacing Loop sensor. With standard operations including : two channel input ports, two channel output ports and selectable presence time options(1~60 sec). The VDS-100 covers your detection needs.

The VDS-100's wide inductance range allows for use with the wide variety of magnetic found in the Traffic control industry. Separate channel for detect and alarm provide for quick installation of proper operation.

Reliable operation and long field life are key engineering goals in every MAXiT Inc.'s products.

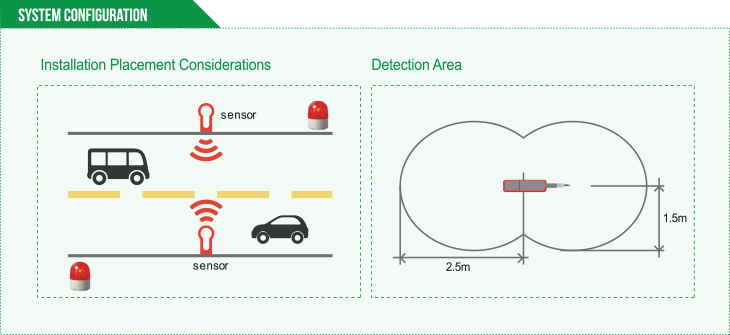

SYSTEM CONFIGURATION

SPECIFICATION
ITEM Unit Min Mid Max
Supply Voltage V 4.5 5 5.5
Operating current mA 21 23 25
Operating Temperature ℃ -20 20 90
Measuring Cycle mS - 20 -
OPERATION

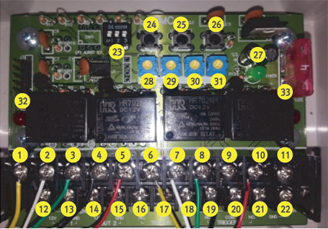

VDS-100: OPERATION
ITEM Channel 1 Channel 2
Input (Sensor) 1. VCC (Red)
2. GND (Black)
3. OUT (Green)
4. RESET (Gray)
5. SENS (Yellow) 		6. VCC (Red)
7. GND (Black)
8. OUT (Green)
9. RESET (Gray)
10. SENS (Yellow)
Output (Relay) 12. 12V Out (MAX 1A)
13. GND 		14. 12V Out (MAX 1A)
15. GND
Trigger (Relay) 16. NC. (10A 24VDC)
17. COM (10A 120VAC)
18. NO 		19. NC. (10A 24VDC)
20. COM (10A 120VAC)
21. NO
Timer 28. Timer Vr. 29. Timer Vr.
Sensitivity 30. Sensitivity Vr. 31. Sensitivity Vr.
Reset Switch 24. Reset to Sensor 1 25. Reset to Sensor 2
Mode Switch 23. Operation mode setup
Power 11. Main Power(12V)
22. Power Ground
26. System Reset
LED 28. Output
34. Power 		29. Output
APPLICATION AREA
APPLICATION AREA: Parking lotParking lot APPLICATION AREA: Fumigator gateFumigator gate APPLICATION AREA: Logistics and WarehousesLogistics and Warehouses APPLICATION AREA: Automatic doorAutomatic door
