Intelligent fire detection system

Detects direction of the fire as well as acquired acoustic information

Detects abnormal sounds such as human screams, vehicle crushing or explosion Safety system tracking emergency on real-time basis

Selective function per situation (Optional functions for fire detection)

Transmits acquired video from CCTV upon detecting abnormal sounds or fire

SDS1000, High accurate audio tracking system for direction of abnormal sound detection and identification which detects and recognizes the abnormal situations by means of analyzing audio information coming in real time from CCTV cameras under surveillance environment. This system include additional function capability of fire detection within 1 second based on 75 meter also. It can be detected and analyzed received sounds and fires information and then decided the sound is normal or abnormal such as the sound of human screaming, glass breaking, car crushing, fire, etc. SDS1000 is composed with microphone sensor, fire flame sensor, PTZ controller and surveillance server.

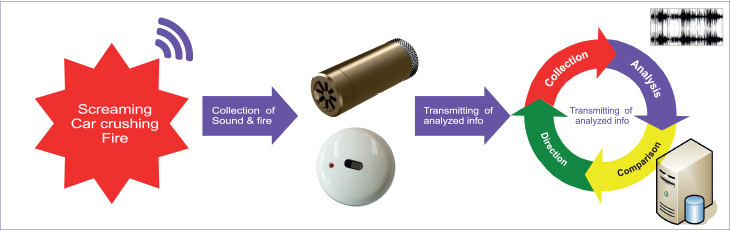

Sound & Fire Identification & Analysis Process

Abnormal sound occurred

The sound of human screaming, glass breaking, car crushing, explosion, fire, etc.

Detector (Sound & Fire)

Define the direction of collected abnormal sound

Noise filtering, Tracking, Noise cancelling Algorithm

Analysis Server

Compare Standard sound DB & Similarity of pattern, distinguish abnormal sound

Surveillance the information of sound direction & Fire
