ANY LINE: T-BRIDGE MODEM

OVERVIEW
T-Bridge Technology Introduction
T-Bridge stands for "Telephone Line Communication", which enables high speed data transmission through telephone cables.
Besides Telephone cables, any types of copper cables such as coaxial cables, speaker cables, and UTP cables can be applied.
T-Bridge can save network construction cost dramatically as it can utilize existing copper cables already wired.
ANY LINE
Maximum date transmission speed is 300Mbps
Maximum transmission distance (range of coverage) is 1.2Km (cf. Ethernet networking is limited to 150m.)
Data transmission is done by TCP/IP communication protocol.
Maximum 7 T-Bridge modems can be connected at single copper line.
Voice communication is not interrupted or disturbed at all. Simultaneous use of voice and data communication is allowed.

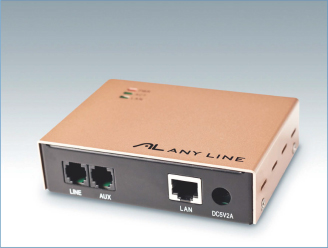

T-Bridge modem
T-Bridge technology can transmit data via 2-wire copper line at high speed.
Supports up to 300Mbps and maximum distance of 1.2km for transmission of voice, video, data or controlling signals.

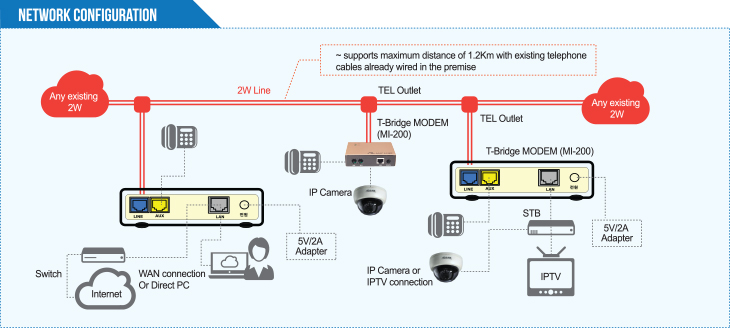

NETWORK CONFIGURATION

FEATURES
  • Using existing telephone cables, maximum 300Mbps data transmission is possible.
  • Maximum distance of 1.2Km over telephone cables or coaxial cables.
  • Dramatic reduction of construction cost and period as no extra cabling required.
    * Voice(analog) and Data(digital) signals are not interrupted/disturbed each other.
  • TCP/IP based data reansmission
  • Maximum 7 additional nodes (T-Bridge modems) can be connection (optimal at 7)
APPLICATION FIELD
  • Anywhere when dramatic reduction of network construction cost and period is a must.
  • IP CCTV installation
  • Video Ad System
  • Vessel Network
  • Power Plants and Factories
SPECIFICATION
ITEM T-Bridge Standard(MODEL: MI-100) T-Bridge High(MODEL: MI-200)
Main Chipset OFDM MODEM chip
Network Interface RJ-11
LED Power, ACT, LAN
LAN Switch 10/100 1 port Switch
PHY Rate 85 Mbps 300 Mbps
Frequency Bandwidth 4-22Mhz 2-30Mhz
T-Bridge Throughput(Max) 30 Mbps 85 Mbps
Channel Access CSMA/CA
QOS VLAN, TOS, DSCP
Transmission Line CPEV / TIV Telephone line / Coaxial Cable / Speaker Cable
Mac Access Node 7 Nodes
Power Supply 110~220V, 50~60Hz
Power Consumption 5W(Mac)
Power 5V/2A
Dimension (WxDxL) 110mm x 25mm x 84mm
Certification CE
